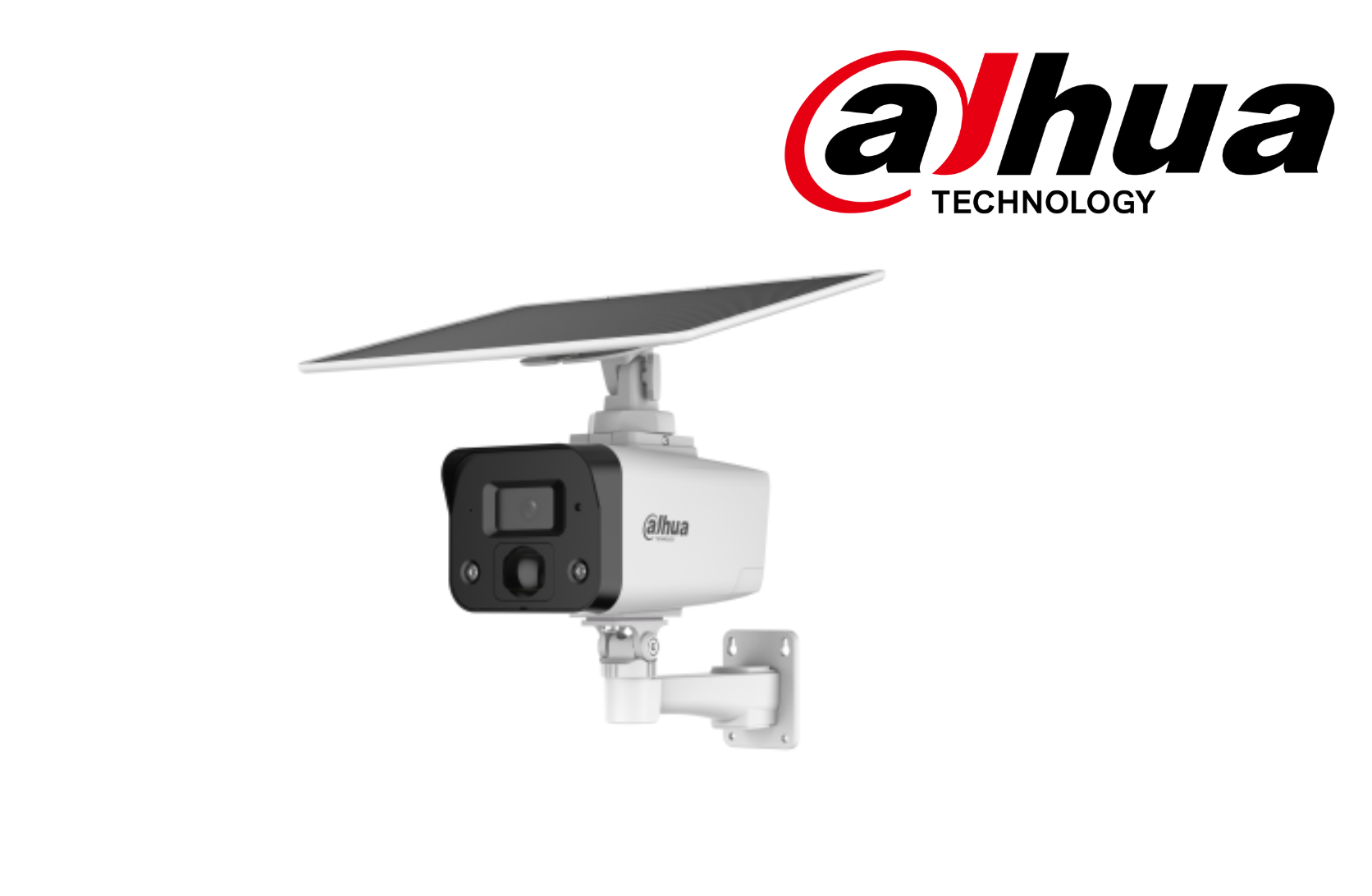

4MP Smart Dual Light Fixed-focal Bullet 4G Solar Power Network Camera
Overview
-
4 MP 1/3" CMOS image sensor with low luminance and high-definition imaging
-
Maximum resolution 4 MP (2560 × 1440) at 15 fps
-
H.265 video compression with ultra-low bitrate
-
Built-in Smart Dual Light (IR + warm light)
-
IR illumination up to 30 m
-
Warm light illumination up to 20 m
-
-
Sound and light alarm linkage for active deterrence
-
Built-in 4G cellular module, suitable for all mobile networks – no wired network required
-
Built-in PIR sensor for accurate human detection based on body temperature
-
AOV (Always-On Video) mode wakes the camera when people or vehicles appear, enabling 24/7 surveillance with ultra-low power consumption
-
Supports Micro SD card up to 512 GB
-
Built-in microphone and speaker with two-way audio
-
Solar panel supports integrated or detachable installation with multi-angle adjustment
-
Built-in 64 Wh lithium iron phosphate battery for stable, long-term performance
-
Supports 12 VDC and USB Type-C power input for external solar panel connection or temporary power bank charging
-
IP67 weather protection
-
SMD supported
Full technical specifications are listed in the Specification tab above.
Image Sensor
1/3" CMOS
Max. Resolution
2560 (H) × 1440 (V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3 s – 1/100,000 s
Min. Illumination
0.01 lux @ F1.6 (Color, 30 IRE); 0.001 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio
> 40 dB
ROM
128 MB
RAM
128 MB
IR Distance
Up to 30 m (98.43 ft)
Warm Light Distance
Up to 20 m (65.62 ft)
Illuminator Control
Auto / Manual
Illuminator Quantity
1 IR LED, 1 warm light
Pan
0° – 360°
Tilt
–60° – 0°
Rotation
0° – 360°
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
3.6 mm
Max. Aperture
F1.6
Iris Control
Fixed
Field of View (3.6 mm)
Horizontal: 78.4°; Vertical: 42.4°; Diagonal: 92.4°
Close Focus Distance (3.6 mm)
1.5 m (4.92 ft)
DORI Performance (3.6 mm)
Detect: 78.0 m (255.91 ft); Observe: 31.2 m (102.36 ft); Recognize: 15.6 m (51.18 ft); Identify: 7.8 m (25.59 ft)
Intelligent Functions
SMD (Smart Motion Detection); PIR-based human detection
Video Compression
H.265
Video Frame Rate
Main Stream: 2560 × 1440 @ 1–15 fps; Sub Stream: 640 × 360 @ 1–15 fps
Streaming Capability
2 streams
Supported Resolutions
4M (2560 × 1440), 3M (2048 × 1536); 1080p, 1.3M, 720p, D1, VGA, CIF
Video Bit Rate
H.265: 32 kbps – 4096 kbps
Day/Night Mode
Auto (ICR) / Color / B/W
WDR
DWDR
BLC / HLC
Supported
White Balance
Auto
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
On/Off (4 rectangular areas)
Smart Dual Light
Yes
Privacy Masking
4 areas
Built-in Microphone
Yes
Built-in Speaker
Yes
Audio Compression
G.711a
Two-way Audio
Supported
Alarm Events
SD card error, SD card full; Motion detection, PIR alarm; Low battery alarm
Network Port
RJ-45 (10/100 Base-T)
–EAU / –EUR
FDD-LTE Bands: B1 / B3 / B5 / B7 / B8 / B20 / B28; Regions: Europe, Middle East, Africa; Power Class 3: 23 dBm ±2.7 dB
–LA
FDD-LTE Bands: B2 / B3 / B4 / B5 / B7 / B8 / B28 / B66; Regions: Latin America; Power Class 3: 23 dBm ±2.7 dB
Interoperability
P2P
Micro SD Card
Supports up to 512 GB
Management Software
DMSS, DSS Pro
Mobile Client
iOS, Android
CE-LVD
EN 62368-1
CE-EMC
Electromagnetic Compatibility Directive 2014/30/EU
CE-RED
Radio Equipment Directive 2014/53/EU
USB
1 × Type-C
Power Supply
12 VDC
Power Consumption
Ultra Power Saving Mode: 0.036 W; Power Saving Mode: 0.047 W; AOV Mode: 0.26 W; Performance Mode: 1.33 W
Operating Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity
≤ 95% RH, non-condensing
Storage Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity
≤ 95% RH, non-condensing
Protection Rating
IP67
Casing Material
Plastic
Dimensions
256 mm × 290 mm × 197 mm (L × W × H)
Net Weight
1357 g
Gross Weight
2869 g
Battery Type
Lithium iron phosphate
Battery Capacity
64 Wh
Battery Voltage
6.4 V
Battery Weight
550 g
Charging Temperature
–30 °C to +60 °C
Discharging Temperature
–40 °C to +60 °C
Cycle Life
More than 1,000 cycles
Ultra Power Saving Mode (no-trigger recording)
up to 76 days
Power Saving Mode (30 alarms/day, ≤15 s each)
up to 56 days
AOV Mode (30 alarms/day, ≤15 s each)
up to 10 days
Performance Mode (continuous recording)
up to 2 days
Cell Type
Monocrystalline silicon
Max Power Output
10.5 W
Solar Module — Operating Temperature
–40 °C to +60 °C
Solar Module — Dimensions
285 mm × 235 mm × 2.5 mm
