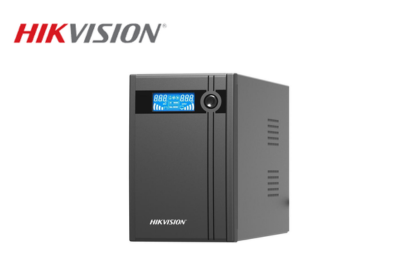

DS-UPS2000 HIKVISION 2000VA Line-interactive UPS

• Built-in AVR
• Super fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Surge protection
• USB port for remote control
• LCD display

Power

• UPS Capacity: 2000 VA / 1200 W

Input

• Input Voltage Range: 140 VAC to 290 VAC
• Input Frequency: 50/60 Hz (self-adaptive)
• Plug Type: AU Type I

Output

• Output Voltage Range: 210 VAC to 235 VAC
• Output Frequency: 50 Hz ± 0.5 Hz
• Transfer Time: ≤ 10 ms
• Waveform: PWM
• Outlet Type: AU Type I
• Outlet Number: 4

Battery

• Battery Type: 12 V/9 Ah x 2 pcs, lead-acid battery
• Recharge Time: 6-8 hours (recovers to 90% capacity)
• Typical Backup Time:
  • Run time at 100 W: 70 minutes
  • Run time at 300 W: 17 minutes
  • Run time at 600 W: 5 minutes

Interface

• Communication Ports: USB

Protection

• Full Protection: Surge protection, overload protection, discharge protection, short circuit protection

Indicator

• Display: LCD screen showing input voltage, output voltage, battery capacity, and load level

Alarm

• Charging Mode (DC mode): Sounds every 8 seconds
• Low Battery: Sounds every second
• Overloading Mode: Sounds every 0.5 seconds
• Fault: Continuously sounds

General

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating Humidity: 30% to 90% (non-condensing)
• Dimensions: 345 mm × 122 mm × 192 mm (13.58" × 4.80" × 7.56")
• Weight: Approx. 11 kg (24.3 lb)
