CCTV Security SV IP 5MP Cameras

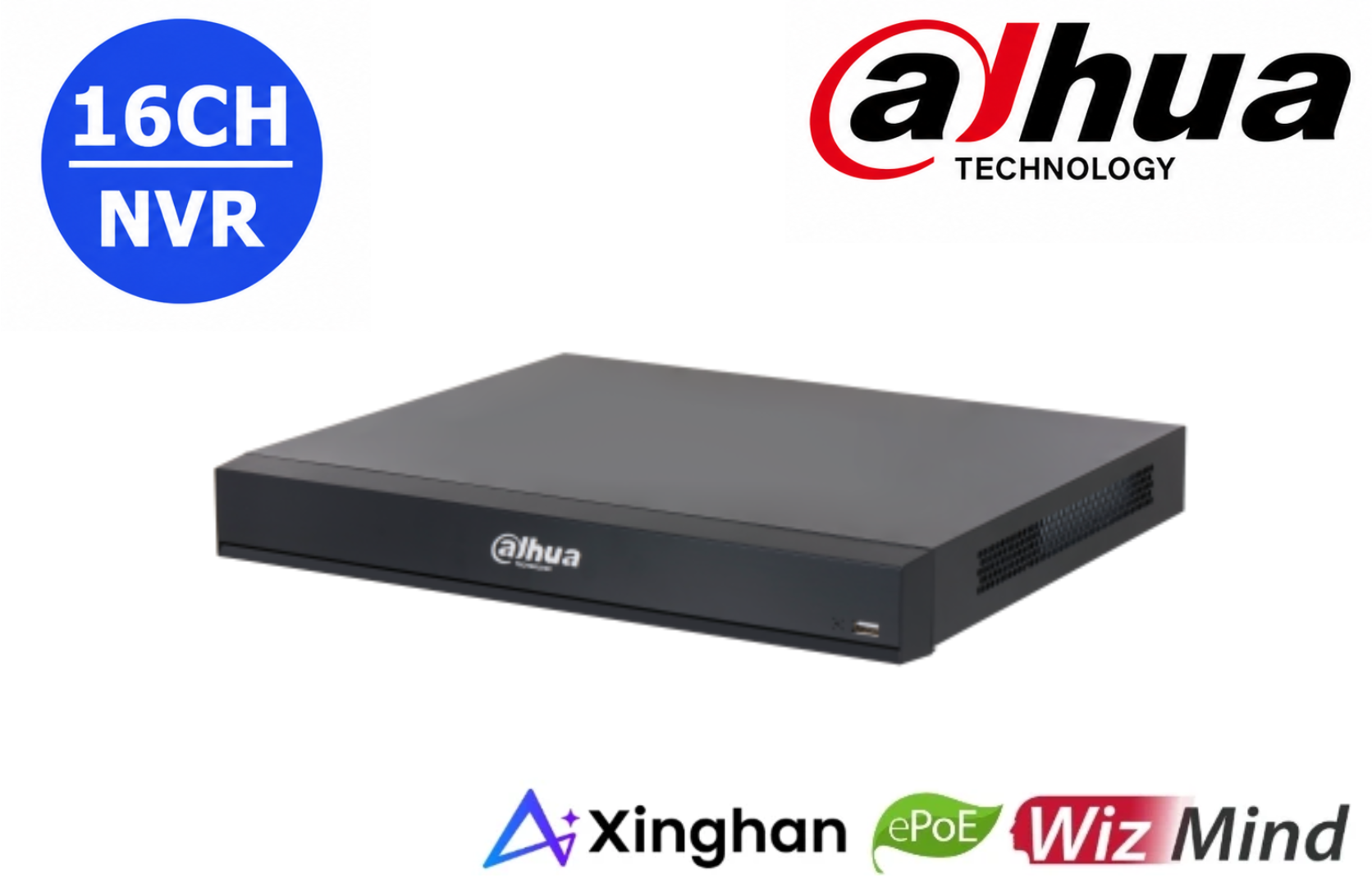

16CH 1U 16PoE 2HDDs WizMind Network Video Recorder
Key Features
- 16 Channel WizMind Network Video Recorder
- Built-in 16 Port PoE Switch
- Supports up to 32MP IP Cameras
- Up to 8K HDMI Video Output
- Smart H.265+ / H.264+ Compression Support
- 512 Mbps Incoming Bandwidth
- Advanced AI Powered by Xinghan Large-Scale AI Models
- Face Recognition with up to 200,000 Face Images
- AcuPick Intelligent Search Technology
- Perimeter Protection & Video Metadata
- Supports ANPR, Heat Map, People Counting & SMD Plus
- Supports N+M Cluster and iSCSI
- One-Click Arming/Disarming & EPTZ Support
- 2 SATA Bays with up to 20TB per HDD
- Remote Viewing via iOS & Android
Full technical specifications are listed in the Specification tab above.
Video & Performance
40 × 1080p @ 30fps; 16 × 5MP @ 30fps
Incoming
512 Mbps
Recording
512 Mbps
Outgoing
384 Mbps
Video & Performance — Video & Performance
HDMI up to 8K (7680 × 4320); VGA up to 1080p
AI by Recorder
Face Detection; Face Recognition; Video Metadata; Perimeter Protection; SMD; AcuPick; WizSeek
AI by Camera
Face Detection & Recognition; Perimeter Protection; SMD Plus; ANPR; Stereo Analysis; Heat Map; People Counting; PPE Detection; AcuPick
Face Database
Up to 20 Face Databases; Supports up to 200,000 Face Images
Total PoE Budget
200W
PoE
16 × PoE Ports; IEEE 802.3af/at; ePoE Support on Ports 1–8
Network Port
1 × Gigabit RJ-45 Port
USB
1 × Front USB 2.0; 1 × Rear USB 3.0
Audio
1 × RCA Audio Input; 1 × RCA Audio Output
Alarm
4 × Alarm Inputs; 2 × Alarm Outputs
