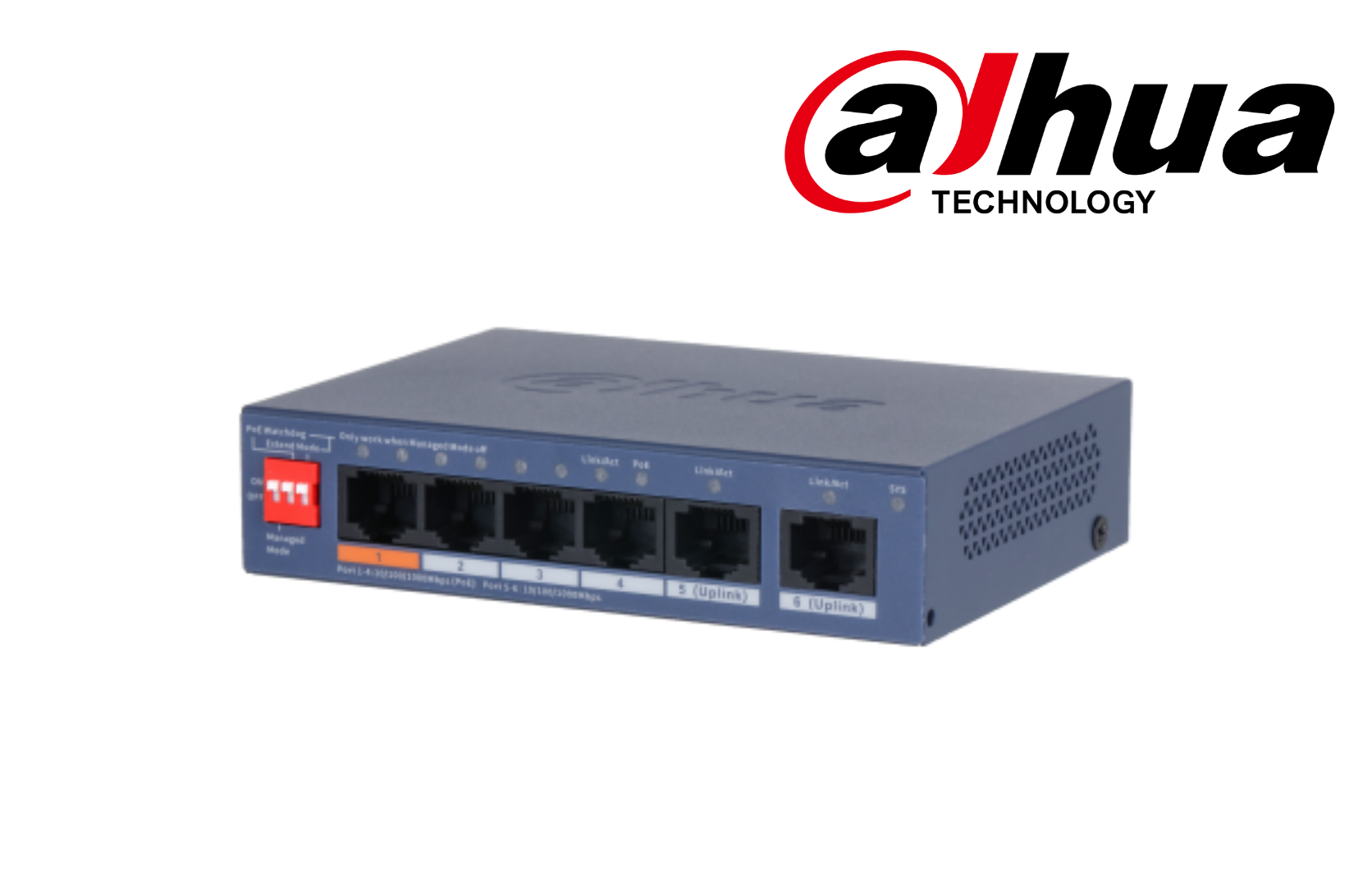

6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE
Key Features
-
4 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit uplink ports
-
60 W total PoE budget
-
IEEE 802.3af/at on all PoE ports
-
Additional Hi-PoE support on Port 1 (orange port)
-
-
DIP switch control for quick mode switching:
-
Cloud-Managed Mode
-
PoE Watchdog
-
Long-Distance PoE
-
-
Wide operating temperature: –10 °C to +55 °C
-
Supports VLAN and loop protection
-
Web-managed and centralised cloud management via DoLynk App
-
Easy configuration with auto network detection and setup
Full technical specifications are listed in the Specification tab above.
Switching Layer
Layer 2
Switching Capacity
12 Gbps
Packet Forwarding Rate
8.9 Mpps
Ports 1–4
4 × RJ-45 10/100/1000 Mbps (PoE)
Ports 5–6
2 × RJ-45 10/100/1000 Mbps (Gigabit uplink)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–90% RH (non-condensing)
Storage Temperature
–40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity
5%–95% RH (non-condensing)
Power Supply
External, 53 VDC / 0.8 A
Power Consumption
Idle: ≤ 3 W; Full Load: 65 W
PoE Support
Yes
PoE Protocols
IEEE 802.3af / IEEE 802.3at / Hi-PoE
PoE Output Power
Port 1: ≤ 60 W; Ports 2–4: ≤ 30 W per port; Total PoE Budget: ≤ 60 W
PoE Power Management
PoE power consumption management; Remote PoE on/off; Automatic PoE shutdown on overload detection
PoE Pin Assignment
V+: 1, 2, 4, 5; V–: 3, 6, 7, 8
Long-Distance PoE
Yes
Managed Mode
ON (default): Local web + cloud management; OFF: Unmanaged mode
PoE Watchdog
Monitors ports 1–4; Automatically restarts PoE if no traffic is detected for 2 minutes; Only active when Managed Mode is OFF
Extend Mode
Ports 1–4 support up to 250 m transmission at 10 Mbps; Only active when Managed Mode is OFF
Reset Button
1
MTBF
232.62 years
Packet Buffer
4 Mbit
Jumbo Frame
9216 Bytes
MAC Address Table
2K
Supported VLANs
32
IEEE Standards
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az
VLAN
IEEE 802.1Q VLAN
Port Features
IEEE 802.3x Flow Control; Unknown Unicast Suppression; Multicast Storm Control; Broadcast Storm Control; MAC + Port Binding; Loop Prevention
Port Mirroring
N:1 Mirroring; Local Port Mirroring
LLDP Support
Yes
DHCP
DHCP Client
Security
Port Isolation
Management Methods
Web Management; Cloud Management
Monitoring & Maintenance
Logs; Fault Alarms
ESD Protection
Air Discharge: 8 kV; Contact Discharge: 6 kV
Lightning Protection
Common Mode: 6 kV
Net Weight
0.2 kg (0.44 lb)
Gross Weight
0.76 kg (1.68 lb)
Product Dimensions
115 × 84 × 27 mm (4.53" × 3.33" × 1.06")
Packaging Dimensions
195 × 114 × 83 mm (7.68" × 4.49" × 3.27")
Casing Material
Sheet metal
Mounting Options
Desktop mount, Wall mount
Packing List
1 × Quick Start Guide; 1 × Legal and Regulatory Information; 1 × Power Adapter; 1 × Power Cord
