Overview

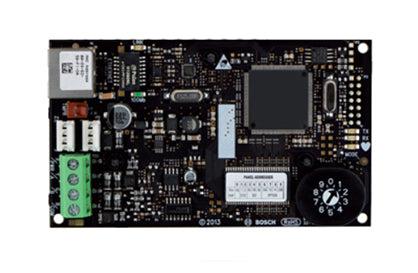

The Bosch B426-M Conettix Ethernet Communication Module is a four-wire powered SDI, SDI2 and Option bus device that provides secure two-way IP communication for compatible Bosch control panels (including Solution 2000 & 3000) over IPv4 or IPv6 Ethernet networks. It supports reporting and path supervision to a Conettix receiver, remote administration via RPS or A-Link, and integration with building-automation systems — with flexible end-to-end path supervision, AES encryption and anti-substitution features for high-security and fire-monitoring applications.
Key Features
- Full two-way IP event reporting with remote control panel programming support
- 10/100 Base-T Ethernet communication for IPv6 and IPv4 networks
- NIST-FIPS197 Certified for 128-bit to 256-bit AES encrypted line security
- Plug and Play installation, including UPnP to enable remote programming behind firewalls
- Advanced configuration by browser, RPS, or A-Link
- Meets UL864 and NFPA72 for fire monitoring with approved Bosch control panels
Full technical specifications are listed in the Specification tab above.
📄 Download Datasheet (PDF)📄 Download User Manual (PDF)📄 Download Quick Start Guide (PDF)
Bus Type
SDI, SDI2 and Option bus (four-wire powered)
Network
10/100 Base-T Ethernet, IPv4 and IPv6
Reporting
Full two-way IP event reporting with remote control panel programming
Encryption
128-bit to 256-bit AES, NIST-FIPS197 Certified (encrypted line security)
Configuration
Browser, RPS (Remote Programming Software), or A-Link; UPnP for remote programming behind firewalls
LAN/WAN Connector
RJ-45 modular port (Ethernet)
Ethernet Cable
Category 5 or better unshielded twisted pair
Ethernet Cable Length
Up to 100 m (328 ft)
Data Bus Wire Gauge
18 AWG or 22 AWG
Data Bus Wire Length
150 m (500 ft) at 0.65 mm (22 AWG); 300 m (1000 ft) at 1.02 mm (18 AWG)
Voltage
12 VDC nominal
Current (Maximum)
100 mA max
Board Dimensions
59.5 × 108 × 16 mm (2.19 × 4.25 × 0.629 in)
Operating Temperature
0 °C to +49 °C (+32 °F to +120 °F)
Relative Humidity
Up to 93% non-condensing
Fire Monitoring Standards
UL864 and NFPA72 (Single Communication Technology, with approved Bosch control panels)
